Videos of Automatic Aeration Control System for Aquaculture:
What is the Automatic Aeration Control System?
- It is an intelligent fishery management system that not only provides real-time monitoring but also provides data and analysis to improve the overall success and competitiveness of your farm.
- It is a control system that allows local control of all types of equipment, such as oxygenators, wave generators, and baiters.
- All ponds and waters are at your fingertips.
- Multifunctional equipment, basic 01 for two ponds, advanced 02 for four ponds, and customized 03 for eight ponds.
- Easy tool, 5 minutes to install, 1 minute to scrub and maintain, 0 maintenance costs.
- A multi-parameter collector supporting dissolved oxygen, water temperature, pH, ammonia, ORP… Dozens of data acquisitions.

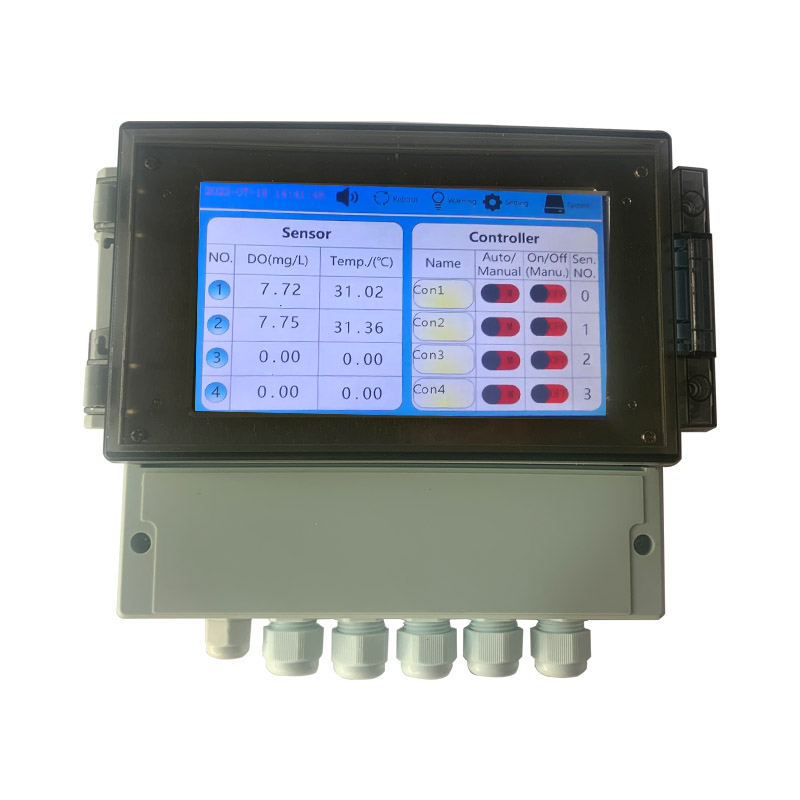

- It is a humanized housekeeper, easy to operate with a color touchscreen.
- Increase efficiency and save money，9 major benefits of the system, a 30-90% reduction in electricity consumption, 5-25% reduction in bait, 30-90% reduction in medication input, 25-40% reduction in labor, more than 98% reduction in risk of oxygen deficiency, 20-300% increase in production, 50-80% increase in competitiveness in the same industry, more than 90% controllability in farming, quality 10-100% premium.
Hardware parameters:
| Indicators | Parameters |
|---|---|
| Power supply | ~50Hz 100V ~ 240V |
| Ambient temperature | -20℃ ~ 40℃ |
| Dissolved oxygen range | 0 ~ 20mg/L or 0 ~ 200% Saturation |
| Dissolved Oxygen Sensor Accuracy | 1% |
| Drift | <1% per year |
| Sensor Material | PVDF |
| Temperature Sensor Type | NTC |
| Water temperature temperature range | 0 ~ 50℃ |
| Temperature Accuracy | ±0.2℃ |
| Measuring distance | 25m (can be extended to 50m/100m/400m/1000m) |
| Sensor cleaning cycle | Around 3 months (may vary depending on water quality) |
| Max.number of sensors supported | Around 3 months (may vary depending on water quality) |
| Number of controllers | 4 way (power is related to the power of the optional contactor) 4 way independent control |
| Data calculation/storage | 30 years (for easy analysis of own farming big data) |
| Sensor type support | Dissolved oxygen, water temperature, pH, ammonia nitrogen, turbidity, etc. |
Software function display:
1. Real-time display of measured current water quality data;
2. Real-time statistics and display of feed and electricity;
Independent control of oxygenation, baiting, and other equipment;
3. Real-time data formation curve, timely analysis of pond conditions;
4. When the system detects that the dissolved oxygen is below the danger value, the system will automatically start the oxygenation equipment to avoid the loss caused by a lack of oxygen.
5. Real-time statistics on the length of time the oxygenator has been on for the day, for the user to count the electricity bill, and a comprehensive analysis to achieve savings in electricity costs;
6. The multi-day curve can be used to analyze the overall situation of the pond and to adjust the water in time to keep the pond at a good level.
7. Combined with the multi-day data, the big data automatically detects the pond’s water trend and gives farming advice.
Hardware function demonstration:
1. Real-time display of the detected water body indicators;
2. Automatic and manual switching control of the equipment at any time;
3. Can be connected to multiple sensors;
4. Can be connected to multiple control devices;
5. Can be controlled separately and independently;
6. Self-detection and protection, to ensure the safe and stable operation of the equipment.
