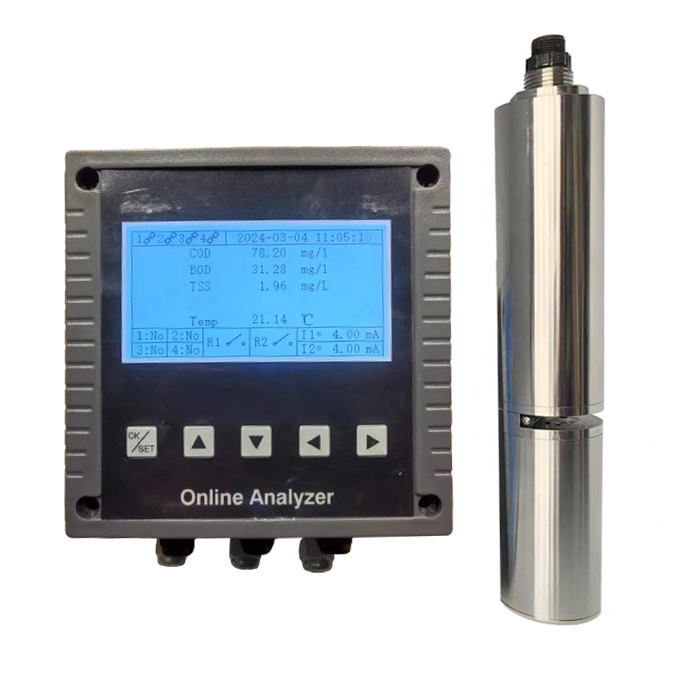

DS500 Online COD BOD TSS Sensor Analyzer

Name: DS500 Online COD BOD TSS Sensor Analyzer
Brand: GZHX (OPS)
SKU: DS500
Availability: InStock

UV245nm · Reagent-free · COD 0~5000 mg/L · IP68 · RS-485 / MODBUS

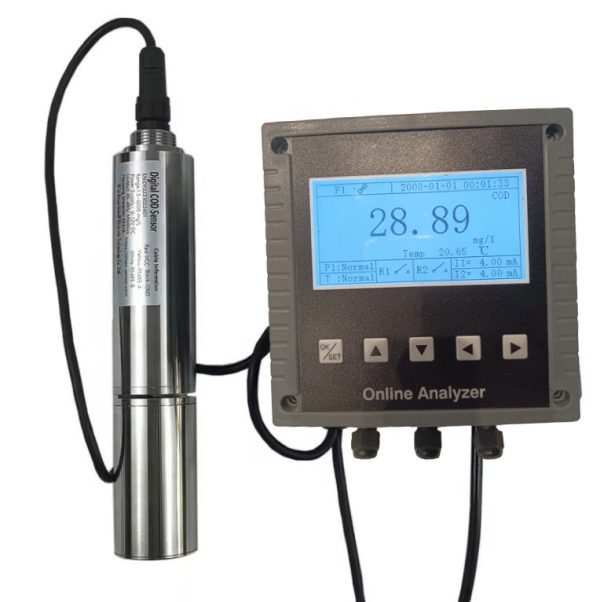

DS500 Online COD BOD TSS Sensor Analyzer

Digital sensors, RS-485 output, Modbus protocol.
Automatic cleaning function and few maintenance.
No chemical reagents, no secondary pollution.
Direct immersion COD measurement without sampling.
Quick response time and precision for COD continuous measurement.
Real-time data transmission for timely and accurate monitoring data.
Corrosion-resistant shell, easy to install.
Proven UVC LED technology, long lifetime, stable and instant measurement.
Measures COD, TOC, TSS and temperature.
Low power consumption design with anti-interference performance.
Automatic compensation for turbidity interference.

254+850nm dual light source

0~5000mg/L COD

IP68protection

Send an Inquiry WhatsApp: +86 17328316260

Technology Parameter

DS500 · COD Sensor

Product Name	COD Sensor / Chemical Oxygen Demand Sensor
Model	DS500
Detection principle	UV245nm UV Optics
Measurement range DS501 (6 mm gap)	COD 0~500 mg/L · BOD equiv. 0~200 mg/L · TSS equiv. 0~500 mg/L
	COD 0~1000 mg/L · BOD equiv. 0~500 mg/L · TSS equiv. 0~1000 mg/L
	COD 0~2000 mg/L · BOD equiv. 0~1000 mg/L · TSS equiv. 0~2000 mg/L
Measurement range DS502 (2 mm gap)	COD 0~5000 mg/L · BOD equiv. 0~2000 mg/L · TSS equiv. 0~3000 mg/L
Measurement accuracy	3-5%
Resolution	0.01 mg/L
Output signal	RS-485, MODBUS protocol
Calibration method	2 points
Waterproof level	IP68
Under pressure	1 bar
Product material	SS316 / Titanium alloy
Product Size	∅46×234 mm
Power information	DC 6~12V, current <10mA
Cable length	Standard 5 meters, longer can be customized

Application Areas

Where the DS500 analyzer is used

Surface water & rivers/lakesPollution detection and daily water quality monitoring.

Sewage treatment plantsMonitoring organic load variations during input, treatment and output.

Industrial & mining enterprisesDetection of urban sewage discharge; petrochemical, chemical, power, pharmaceutical, food, electronics.

Aquaculture & fisheriesFish farming and fishery water pollution monitoring.

Drinking waterMonitoring organic matter in raw water, oxidation, coagulation and activated carbon filtration.

Smart cityUrban park, well and smart city water quality detection.

FAQ

FAQs about Online COD BOD TSS Sensor Analyzer

What is COD, BOD, and TSS?

COD (Chemical Oxygen Demand) measures the oxygen required to chemically oxidize organic and inorganic matter in water — an indicator of the pollution load. BOD (Biochemical Oxygen Demand) is the dissolved oxygen consumed by microorganisms while decomposing organic matter — a key parameter for wastewater treatment effectiveness. TSS (Total Suspended Solids) is the concentration of solid particles suspended in water, important for water clarity and sedimentation assessment.

Why measure Chemical Oxygen Demand (COD)?

COD measurement assesses the organic pollution level of water bodies, monitors wastewater treatment efficiency, ensures compliance with discharge regulations, helps optimize treatment processes, predicts oxygen depletion events, and supports R&D of more sustainable treatment technologies.

What processes require COD monitoring?

Municipal and industrial wastewater treatment (input / treatment / output), treatment of industrial effluents, and drinking water plants — monitoring organic matter in raw water, oxidation, coagulation and activated carbon filtration stages.
