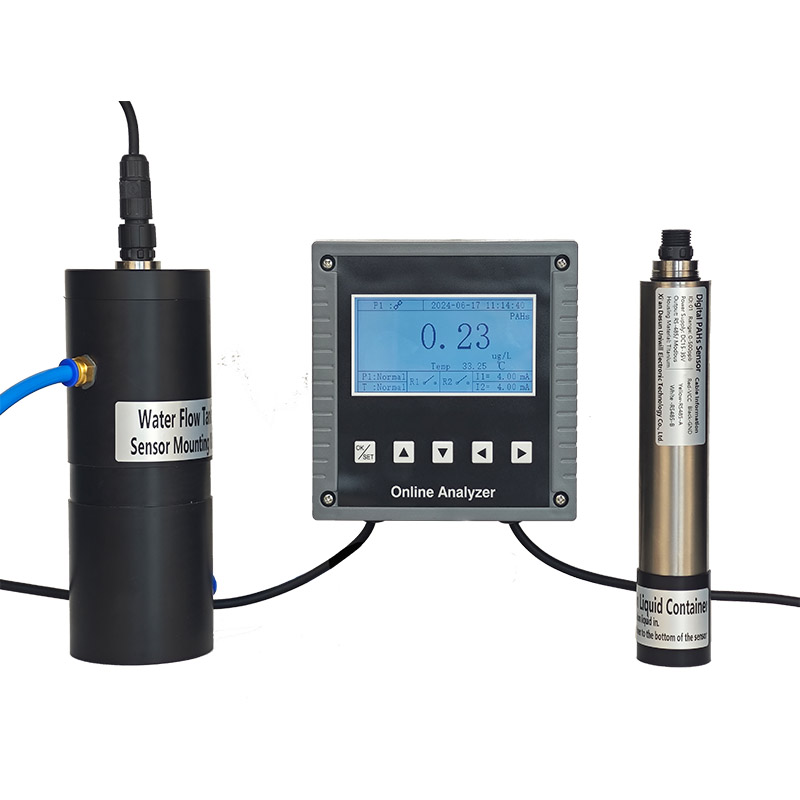

OPS Ships 7 Sets of PAH, pH and Turbidity Sensors to South Korea for Marine EGCS Systems

OPS-Lily — Thu, 15 Jan 2026 07:25:56 +0000

South Korea | Marine Environmental Monitoring | EGCS Compliance

OPS, a professional manufacturer of marine and industrial water quality sensors, has announced the successful shipment of 7 sets of PAH (Polycyclic Aromatic Hydrocarbon), pH, and Turbidity sensors to South Korea. The sensors will be deployed in Marine Exhaust Gas Cleaning Systems (EGCS) to support continuous washwater monitoring and ensure compliance with IMO EGCS discharge regulations.

The shipment marks another milestone in OPS’s expanding footprint in the global marine scrubber and environmental compliance market, particularly within Asia’s leading hub for shipbuilding and marine equipment.

Designed for IMO-Compliant EGCS Wash Water Monitoring

With the enforcement of the IMO 2020 sulfur cap and the MEPC EGCS Wash Water Guidelines, ship operators are required to continuously monitor scrubber wash water to prevent secondary marine pollution. Among all monitoring parameters, PAH, pH, and turbidity are regarded as the most critical indicators of EGCS discharge performance.

PAH monitoring ensures that harmful unburned hydrocarbons remain within allowable discharge limits
pH measurement verifies proper neutralization of acidic scrubber wash water
Turbidity monitoring helps assess suspended solids and overall discharge quality

The sensors supplied by OPS are engineered to deliver stable, accurate, and real-time measurements under harsh marine operating conditions.

Sensor Features Optimized for Marine Scrubber Environments

The EGCS sensor sets shipped to South Korea are industrial-grade solutions purpose-built for shipboard scrubber systems, offering several technical advantages:

Compliance with IMO MEPC EGCS monitoring requirements
Optical PAH sensor technology with fast response and low long-term drift
High-reliability pH sensors with advanced temperature compensation and anti-fouling performance
Robust turbidity sensors resistant to air bubbles, vibration, and particulate interference
RS485 / Modbus communication, enabling seamless integration with EGCS control panels and data recorders

Each sensor undergoes factory calibration and functional testing before shipment to ensure reliable performance during long-term onboard operation.

Supporting South Korea’s Marine and Shipbuilding Industry

South Korea remains one of the world’s most important centers for shipbuilding, retrofitting, and marine system integration, where EGCS solutions are subject to strict technical and regulatory standards. The successful delivery of these sensors highlights OPS’s ability to meet international compliance, quality, and delivery expectations for demanding marine applications.

Commitment to Global Marine Environmental Compliance

OPS continues to focus on EGCS wash water monitoring, marine water quality sensors, and environmental compliance technologies. By providing reliable and IMO-compliant sensor solutions, the company supports shipowners, scrubber system integrators, and shipyards worldwide in meeting evolving environmental regulations and advancing sustainable maritime operations.

Tags: EGCS wash water monitoring, Marine EGCS sensors, PAH sensor for ship scrubbers, pH and turbidity sensors for EGCS, IMO EGCS compliance monitoring, Ship scrubber environmental monitoring, Marine exhaust gas cleaning system sensors, EGCS sensor supplier, OPS marine sensors.

Video

Related Products

DS810 PAH Sensor Analyzer for Marine Scrubbers (EGCS) Wash Water Monitoring System

DS510 Online pH Sensor Probe and Portable pH Meter for Water Quality Monitoring

Online Turbidity Sensor

To send An Enquiry Now

The post OPS Ships 7 Sets of PAH, pH and Turbidity Sensors to South Korea for Marine EGCS Systems appeared first on Water Quality Sensors.

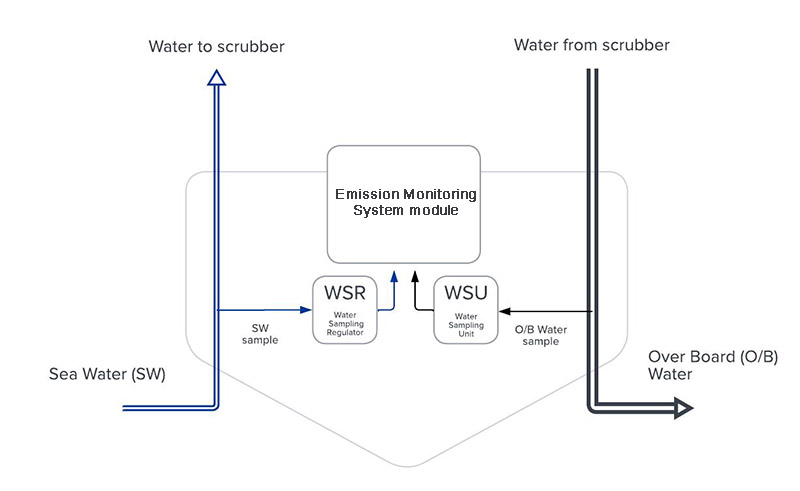

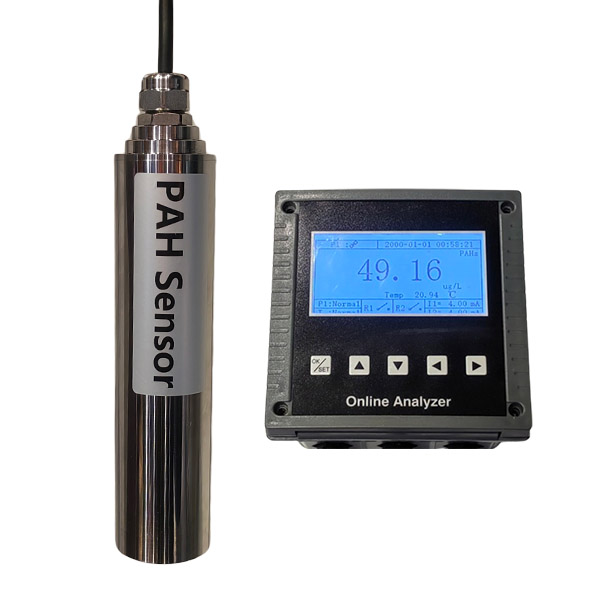

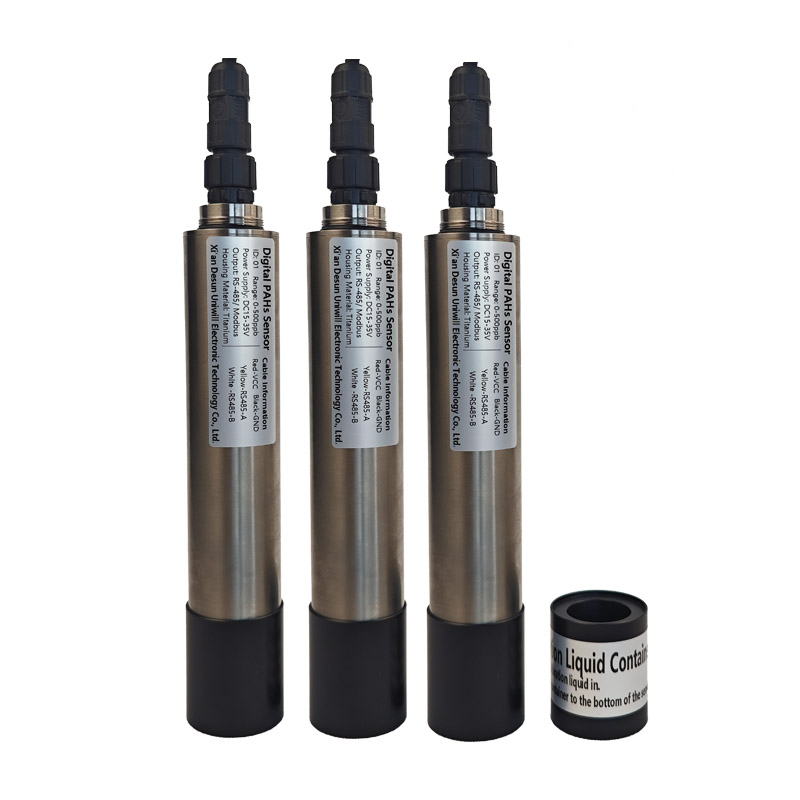

In which module is the PAH sensor used in the EGCS

OPS-Lily — Wed, 31 Jul 2024 03:07:12 +0000

In an Exhaust Gas Cleaning System (EGCS), PAH (Polycyclic Aromatic Hydrocarbons) sensors are typically integrated into the Emission Monitoring System module. This module is responsible for the real-time monitoring of various pollutants in the exhaust gas, including PAH. Here is the detailed location and application of PAH sensors within the Emission Monitoring System module:

PAH Sensor Location and Application in the Emission Monitoring System Module

Installation in the Exhaust Gas Duct:

Sampling Probe: The sampling probe for the PAH sensor is usually installed in the exhaust gas duct. These probes directly extract samples from the exhaust flow for analysis. The typical locations for these probes are at the outlet of the gas treatment tower or before the exhaust stack to ensure that the samples represent the final exhaust emissions.

Pre-treatment Unit:

Pre-treatment System: The exhaust gas samples need to pass through a pre-treatment system to remove particulates and condensate. The PAH sensor’s front end connects to these pre-treatment components to ensure that the sample meets the requirements of the analytical instrument before analysis.

Gas Chromatograph-Mass Spectrometer (GC-MS) System:

Analyzer: PAH sensors are typically integrated into a Gas Chromatograph-Mass Spectrometer (GC-MS) system. This system can separate, detect, and quantify PAH components in the exhaust gas, providing highly sensitive and accurate measurements. The GC-MS system itself contains sensors or detectors to identify and quantify various PAH compounds.

Specific Applications and Functions

Real-time Monitoring and Data Recording: PAH sensors provide real-time data, allowing operators to immediately understand the PAH concentration levels in the exhaust gas. If the concentration exceeds preset limits, the system triggers an alarm.

Environmental and Regulatory Compliance: Continuous monitoring of PAH concentrations ensures that exhaust emissions comply with environmental regulations, preventing excess emissions.

System Optimization and Maintenance: Based on the data provided by the sensors, operators can optimize the operating parameters of the EGCS, improving the efficiency of pollutant removal. Additionally, this data helps in scheduling preventive maintenance to ensure the system’s long-term stable operation.

Maintenance and Calibration

Regular Calibration: PAH sensors need regular calibration to ensure data accuracy and reliability. Calibration is usually performed using standard gases with known concentrations.

System Maintenance: Includes cleaning sampling probes, replacing filters, and checking condensers to ensure the proper functioning of the pre-treatment unit and sensors.

In an EGCS, PAH sensors are a critical component of the Emission Monitoring System module, primarily used for real-time monitoring of exhaust gas emissions. By working in conjunction with the pre-treatment unit and GC-MS analyzer, they provide accurate PAH concentration data, helping ensure the system’s environmental compliance and operational efficiency.

We OPS developed PAH sensors to measure PAH concentration in 2023, it can detect and measure polycyclic aromatic hydrocarbons (PAHs) from 0 to 1000 ppb (µg/L). OPS PAH Sensor operates on the principle of UV fluorescence, which is much more sensitive than the conventionally used infrared scattering or absorption method. Know more about our PAH sensor, Please email sale@dshech.com.

Tags: PAH sensor in EGCS, PAH (Polycyclic Aromatic Hydrocarbons) sensors, Emission Monitoring System module, Exhaust Gas Cleaning System (EGCS), PAH concentration levels, Continuous monitoring of PAH concentrations, Suppliers, manufacturers, factory, wholesale, buy, price, quotation, bulk, for sale, companies, stock, cost.

Main Components and Functions of Emission Monitoring System in an EGCS

OPS-Lily — Tue, 16 Jul 2024 06:38:36 +0000

The emission monitoring system in an Exhaust Gas Cleaning System (EGCS) is critical for ensuring that emissions are within environmental regulations and for optimizing the system’s performance. Here are the main components and functions of the emission monitoring system in an EGCS:

Main Components of Emission Monitoring System

Sampling Probes:

Function: Installed in the exhaust gas stream to collect representative samples of the exhaust gas for analysis.

Location: Typically placed at the outlet of the scrubber or near the exhaust stack.

Pre-treatment Unit:

Function: Conditions the sample before it reaches the analyzers. This may include removing particulates, cooling the gas, and removing moisture.

Components: Filters, condensers, and dryers.

Gas Analyzers:

Function: Measure the concentration of various gases and pollutants in the exhaust gas.

Types of Analyzers:

SOx Analyzers: Measure sulfur oxides (SOx) concentrations.

NOx Analyzers: Measure nitrogen oxides (NOx) concentrations.

CO2 Analyzers: Measure carbon dioxide (CO2) concentrations.

O2 Analyzers: Measure oxygen (O2) levels to help in combustion efficiency assessment.

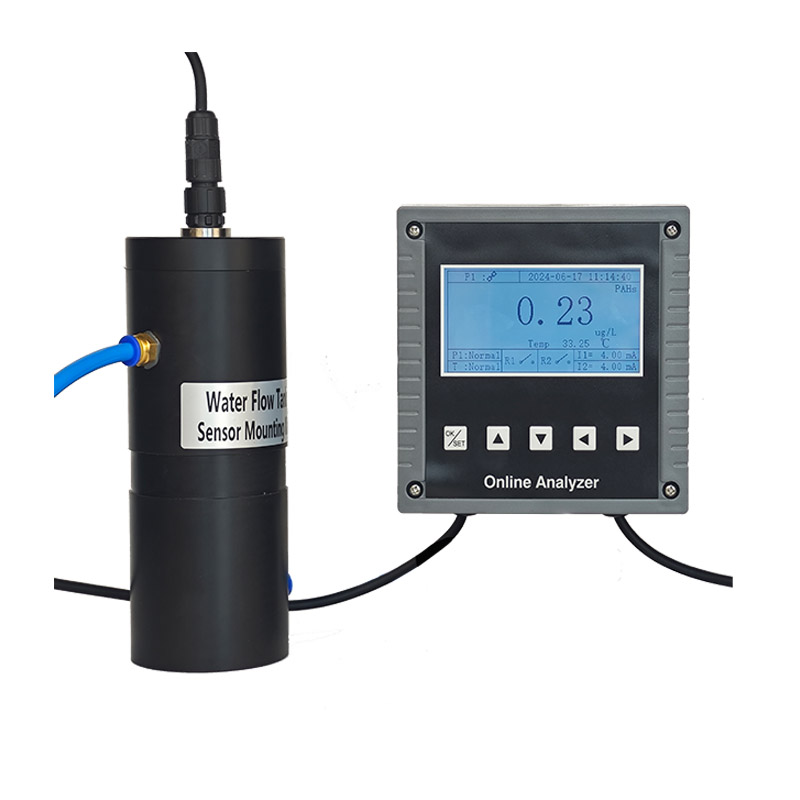

PAH Analyzers: Measure polycyclic aromatic hydrocarbons (PAHs) concentrations.

Particulate Matter (PM) Monitors:

Function: Measure the concentration of particulate matter in the exhaust gas.

Technology: Often uses laser-based methods for real-time monitoring.

Flow Meters:

Function: Measure the flow rate of the exhaust gas to ensure that the sampling is representative and to calculate total emissions.

Types: Can include mass flow meters and volumetric flow meters.

Data Acquisition and Control System:

Function: Collects data from all the analyzers and sensors, processes the data, and controls the emission monitoring system.

Components: Includes data loggers, controllers, and software for data analysis and reporting.

Calibration System:

Function: Ensures the accuracy and reliability of the gas analyzers and sensors.

Components: Standard gas cylinders and automatic calibration routines.

Functions and Importance of Emission Monitoring System

Real-Time Monitoring:

Provides continuous, real-time data on the concentration of pollutants in the exhaust gas.

Enables operators to make immediate adjustments to the EGCS to ensure optimal performance.

Compliance with Environmental Regulations:

Ensures that the ship or industrial facility complies with international and local emission standards (e.g., IMO regulations for ships).

Helps avoid fines and penalties associated with non-compliance.

Performance Optimization:

By monitoring emissions, operators can optimize the operation of the EGCS, improving its efficiency and reducing operational costs.

Identifies trends and potential issues before they become serious problems.

Data Logging and Reporting:

Continuous logging of emission data helps in creating detailed reports for regulatory bodies.

Provides historical data that can be used for performance analysis and maintenance planning.

Alarm and Safety Systems:

The emission monitoring system can trigger alarms if pollutant levels exceed preset limits, allowing for immediate corrective action.

Enhances the overall safety of the operation by ensuring that harmful emissions are kept under control.

Maintenance and Calibration

Regular Calibration: Periodic calibration of the gas analyzers and sensors using known standard gases to maintain measurement accuracy.

Maintenance: Routine checks and maintenance of sampling probes, filters, and other components to ensure they are clean and functioning correctly.

Software Updates: Keeping the data acquisition and control software up-to-date to ensure compatibility with regulatory requirements and technological advancements.

In summary, the emission monitoring system is a vital component of the EGCS, providing the necessary tools for real-time monitoring, compliance, performance optimization, and safety.

Tags: Emission Monitoring System, EGCS, PAH Analyzers, Measure polycyclic aromatic hydrocarbons (PAHs) concentrations, detect and measure polycyclic aromatic hydrocarbons, Suppliers, manufacturers, factory, wholesale, buy, price, quotation, bulk, for sale, companies, stock, cost.

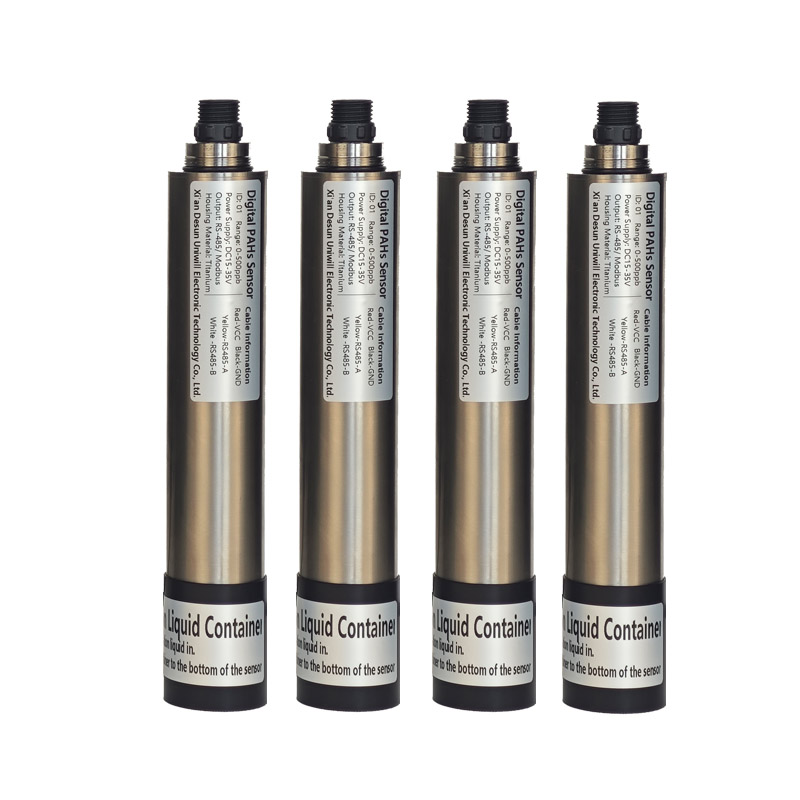

Key Factors to Consider for PAH Sensor Monitoring

OPS-Lily — Fri, 12 Jul 2024 06:18:17 +0000

Real-time PAH sensors are crucial for monitoring air quality. Polycyclic Aromatic Hydrocarbons (PAHs) are a group of organic compounds with multiple aromatic rings. They are found in the environment primarily due to incomplete combustion of organic matter and are known for their potential health hazards.

When selecting and implementing a Polycyclic Aromatic Hydrocarbon (PAH) sensor monitoring system, several key factors need to be considered. These factors will impact the sensor’s performance, accuracy, and applicability. Here are the important considerations:

Sensitivity and Detection Limit

Sensitivity: The sensor should be capable of detecting low concentrations of PAHs in the environment to ensure monitoring even at low pollution levels.

Detection Limit: It’s crucial to determine the lowest PAH concentration that the sensor can detect to evaluate its applicability.

Selectivity

Compound Identification: The sensor should have high selectivity, being able to distinguish PAHs from other potentially present volatile organic compounds (VOCs) or interfering substances.

Interfering Substances: Consider the sensor’s sensitivity to other chemicals (e.g., water vapor, carbon dioxide) to ensure measurement accuracy.

Response Time

Real-Time Capability: The sensor should quickly respond to changes in PAH concentrations in the environment to provide real-time monitoring data.

Dynamic Range: The sensor should offer stable and reliable measurements across a wide range of concentrations.

Stability and Durability

Long-Term Stability: The sensor should maintain stable performance over long-term use, avoiding frequent calibration and maintenance.

Environmental Resistance: The sensor should function properly under various environmental conditions (e.g., temperature, humidity, and pollutant concentration variations).

Portability and Ease of Use

Portability: For field monitoring, the sensor should be lightweight and easy to carry.

Ease of Operation: The sensor should be easy to operate and read data from, reducing the need for user expertise.

Calibration and Validation

Calibration: Regular calibration is necessary to ensure the sensor’s accuracy. The calibration process should be simple and infrequent.

Validation: Laboratory or field tests should validate the sensor’s performance to ensure the reliability of its measurements.

Data Recording and Transmission

Data Recording: The sensor should have data recording capabilities for long-term monitoring and data analysis.

Data Transmission: Wireless transmission capabilities can enable real-time data monitoring and remote access, enhancing the monitoring system’s flexibility.

Cost and Maintenance

Initial Cost: The sensor’s purchase cost should fit within the budget.

Maintenance Cost: The sensor should be easy to maintain, and the maintenance costs should be low to reduce long-term operational expenses.

Regulations and Standards

Compliance: The sensor should comply with relevant environmental monitoring regulations and standards to ensure its measurements are legally and technically recognized.

Certification: Choosing sensors with certification or those widely used in similar applications can increase their credibility.

Considering these factors comprehensively can help in selecting the most suitable PAH sensor and ensuring its effectiveness and reliability in practical applications.

Tags: PAH Sensor Monitoring, Real-time PAH sensors, Polycyclic Aromatic Hydrocarbon sensor, PAH sensor monitoring system, Suppliers, manufacturers, factory, wholesale, buy, price, quotation, bulk, for sale, companies, stock, cost.

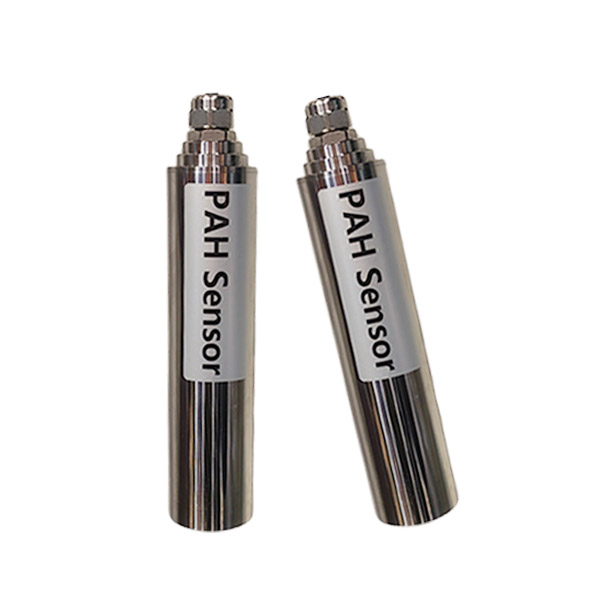

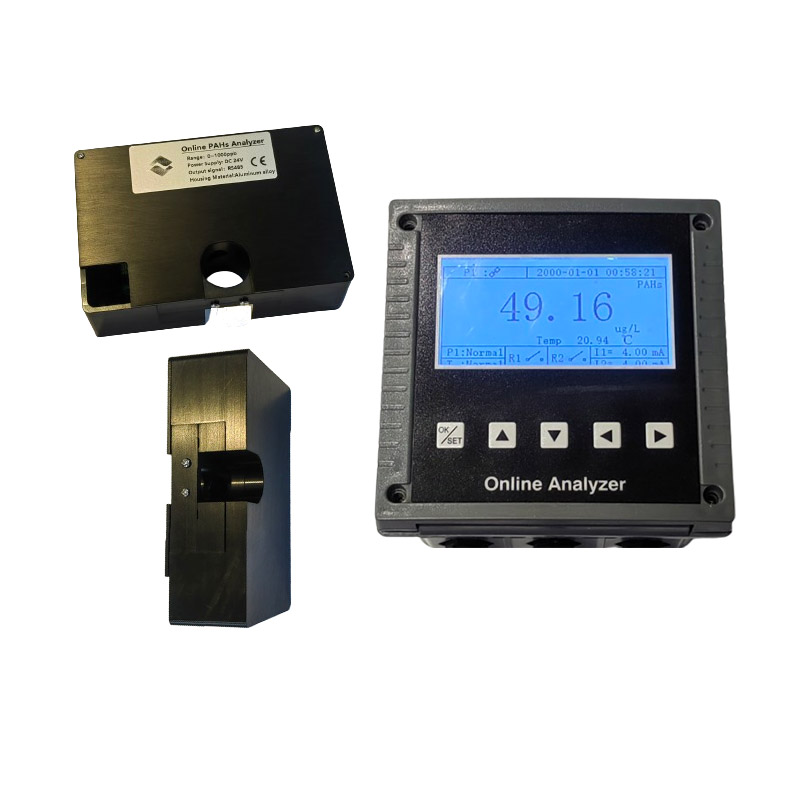

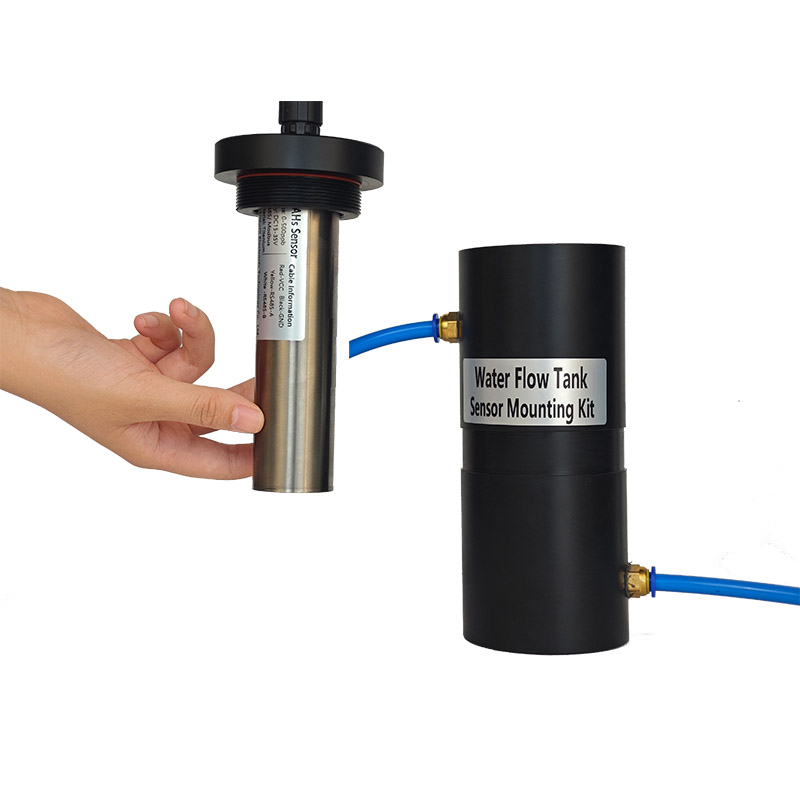

Application Areas of Online PAHs Sensors: Advancing Detection and Monitoring

OPS-Lily — Wed, 19 Jun 2024 02:53:41 +0000

Online PAHs sensors have become invaluable tools in various industries and environments, providing accurate and reliable detection and monitoring of polycyclic aromatic hydrocarbons. This article explores the diverse application areas where PAHs sensors are making a significant impact.

1. EGCS (Exhaust Gas Cleaning Systems):

Online PAHs sensors play a crucial role in EGCS installations, ensuring compliance with emission regulations. By monitoring and measuring the PAH content in exhaust gases, these sensors help optimize scrubber systems and minimize harmful emissions.

2. Water Quality Monitoring Sensor:

In water management, online PAHs sensors are employed to assess water quality and detect any potential PAH contamination. These sensors enable real-time monitoring, enabling prompt interventions to protect aquatic ecosystems and preserve water resources.

3. Marine Scrubber Washwater Monitoring:

Marine scrubber systems use online PAHs sensors to monitor the washwater resulting from exhaust gas cleaning. By continuously measuring PAH levels, these sensors ensure compliance with discharge regulations and minimize the environmental impact of scrubber systems.

4. Oil Spill Monitoring:

During oil spill incidents, online PAHs sensors are utilized to assess the extent of contamination and track the effectiveness of cleanup operations. These sensors enable quick responses, facilitating efficient containment and remediation efforts.

5. Drinking Water:

PAHs sensors are employed within water treatment facilities to ensure the safety and quality of drinking water. By continuously monitoring for PAHs, these sensors can detect any contamination sources and ensure that drinking water meets regulatory standards.

6. Wastewater Monitoring:

In industrial and municipal wastewater treatment plants, online PAHs sensors offer critical insights into the presence and levels of PAHs in effluent streams. This enables operators to identify and address any potential sources of PAH contamination, safeguarding the environment and public health.

7. Refineries:

Within refineries, PAHs sensors are used to monitor and control the emissions from various processes. By continuously measuring PAH levels, these sensors help refineries optimize their operations, minimize environmental impact, and comply with regulatory requirements.

8. Bottom Water Monitoring:

Online PAHs sensors also find application in bottom water monitoring, particularly in areas impacted by oil and gas extraction. These sensors aid in continuously monitoring PAH levels in sediments, providing valuable data for environmental impact assessments and post-incident monitoring.

9. Smoke Scrubbing:

In industries where smoke and particulate matter emissions are a concern, PAHs sensors are instrumental in smoke-scrubbing systems. These sensors provide real-time feedback on PAH levels, allowing for efficient removal and reducing the impact of harmful emissions on air quality.

10. Airports:

Airports utilize PAHs sensors to monitor air quality in and around their premises effectively. By measuring PAH levels, these sensors contribute to the assessment and mitigation of potential risks arising from aircraft emissions and other airport-related activities.

Online PAHs sensors have revolutionized the detection and monitoring of polycyclic aromatic hydrocarbons in various sectors. From industrial processes to environmental management, these sensors prove indispensable in ensuring compliance, protecting ecosystems, and safeguarding public health. As technology advances, their application areas are expected to expand further, contributing to a cleaner and safer future.

The Measuring range of OPS Online PAHs sensors is 0-1000ppb and can be customized, For any interests, freely contact sale@dshech.com for a quote.

Tags: Online PAHs sensors, Exhaust Gas Cleaning Systems, Marine Scrubber Washwater Monitoring, Oil Spill Monitoring, Water Quality Monitoring Sensor, Suppliers, manufacturers, factory, wholesale, buy, price, quotation, bulk, for sale, companies, stock, cost.

Why do exhaust gas cleaning systems (EGCS) need a PAH measurement sensor?

PAH sensors can be employed in marine scrubber systems(MS-SOx) for several purposes

Air Pollution PAH Detection Probe: Enhancing Exhaust Gas Cleaning System (EGCS) Efficiency

To send An Enquiry Now:

The post Application Areas of Online PAHs Sensors: Advancing Detection and Monitoring appeared first on Water Quality Sensors.

Key Parameters need to be Monitored In an Exhaust Gas Cleaning System (EGCS)

OPS-Lily — Wed, 29 May 2024 03:33:57 +0000

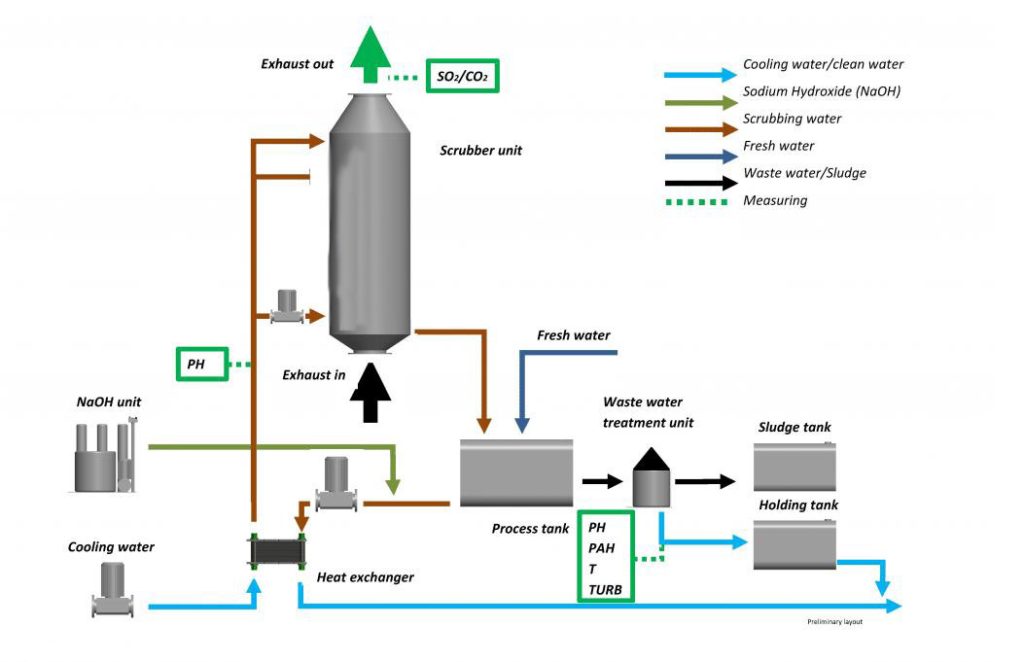

In an Exhaust Gas Cleaning System (EGCS), the following key parameter indicators need to be monitored and evaluated after treatment to ensure that the exhaust emissions comply with environmental regulations and to assess the system’s performance and effectiveness:

1, Sulfur Oxides (SOx) Concentration:

Monitoring Significance:

SOx (particularly SO2) is the primary target of EGCS treatment, and reducing its concentration is a critical indicator of the system’s efficiency.

Standards:

The SOx concentration in emissions should comply with the International Maritime Organization (IMO) and local environmental regulations, such as the IMO global 0.50% m/m sulfur content cap.

2, Nitrogen Oxides (NOx) Concentration:

Monitoring Significance:

Although NOx is not the primary target of EGCS, its concentration still needs to be monitored to ensure no secondary pollution is produced.

Standards:

Comply with IMO’s NOx emission standards (such as Tier II and Tier III).

3, Polycyclic Aromatic Hydrocarbons (PAH) Concentration:

Monitoring Significance:

PAHs are toxic and harmful pollutants, and monitoring their concentration helps assess the environmental protection effectiveness of the system.

Standards:

Ensure that PAH concentration remains within the limits set by environmental regulations.

PAH Sensor for Oil in Water Measurement

4, Particulate Matter (PM) Concentration:

Monitoring Significance:

PM emissions significantly impact the environment and health, and EGCS should effectively reduce PM emissions.

Standards:

Comply with international and local PM emission standards.

5, Carbon Dioxide (CO2) Concentration:

Monitoring Significance:

Although the primary function of EGCS is not to reduce CO2, monitoring CO2 helps assess the overall carbon emissions of the system.

Standards:

There are usually no direct limits, but reducing CO2 emissions aligns with global reduction trends.

6, pH Value:

Monitoring Significance:

The pH value of the wash water and treated wastewater affects the environmental compliance of wastewater discharge.

Standards:

The pH value of discharged wastewater typically needs to be between 6.5 and 8.5.

Digital pH Sensor

7, Turbidity:

Monitoring Significance:

Reflects the cleanliness of the wash water and wastewater, preventing suspended particles from polluting the discharge water.

Standards:

Comply with local wastewater discharge standards.

Online Turbidity Sensor

8, Conductivity:

Monitoring Significance:

Used to assess the concentration of dissolved salts in the wash water, ensuring it is within a reasonable range.

Standards:

Set according to system design and environmental standards.

Conductivity Sensor/ Salinity Sensor

9, Temperature:

Monitoring Significance:

The temperature of the exhaust gas and wash water affects the scrubbing effectiveness and system operating efficiency.

Standards:

Ensure operation within the design range.

10, Flow Rate:

Monitoring Significance:

Includes the flow rate of exhaust gas and wash water to ensure the system operates at its designed capacity.

Standards:

Flow rate monitoring ensures sufficient contact between the exhaust gas and wash water to achieve optimal cleaning effectiveness.

Maintenance and Reporting

Regular Maintenance and Calibration:

Ensure the accuracy and reliability of sensors and monitoring equipment.

Data Recording and Reporting:

Continuously record and analyze the above parameters, generating reports to meet environmental compliance and operational optimization needs.

By monitoring and controlling these key parameters, operators can ensure that the EGCS effectively reduces pollutant emissions and complies with relevant environmental regulations.

Tags: Exhaust Gas Cleaning System, EGCS, Polycyclic Aromatic Hydrocarbons (PAH) Concentration, PAH sensors, Suppliers, manufacturers, factory, wholesale, buy, price, quotation, bulk, for sale, companies, stock, cost.

Why do exhaust gas cleaning systems (EGCS) need a PAH measurement sensor?

PAH sensors can be employed in marine scrubber systems(MS-SOx) for several purposes

Success Case of OPS PAH Sensors used for Exhaust Gas Cleaning System (EGCS)

To send An Enquiry Now:

The post Key Parameters need to be Monitored In an Exhaust Gas Cleaning System (EGCS) appeared first on Water Quality Sensors.

Success Case of OPS PAH Sensors used for Exhaust Gas Cleaning System (EGCS)

OPS-Lily — Tue, 21 May 2024 06:40:31 +0000

Recently, we received positive feedback from our overseas customers. They have installed and tested our newly developed DS810 PAH sensors in their Exhaust Gas Cleaning System (EGCS), and the test results were excellent. The image below shows the monitoring data they shared with us:

This time, the customer tested our PAH sensor with a range of 0-500 ppb, using a buffer solution of 100 µg/L for measurement. The results showed an accuracy of 3%. Following this successful test, the customer expressed interest in signing a sales agency agreement with us for their country.

What is an Exhaust Gas Cleaning System (EGCS)?

An Exhaust Gas Cleaning System (EGCS), commonly known as a scrubber, is a technology used on ships to reduce emissions of harmful pollutants from the exhaust gases produced by marine engines and boilers. The primary purpose of an EGCS is to comply with environmental regulations, such as the International Maritime Organization (IMO) sulfur cap, which limits the amount of sulfur oxide (SOx) emissions from ships. EGCS is a crucial technology for the maritime industry to reduce environmental impact and comply with strict emissions regulations, contributing to cleaner and safer maritime operations.

PAH Sensor in Exhaust Gas Cleaning System (EGCS)

A PAH (Polycyclic Aromatic Hydrocarbon) sensor in an Exhaust Gas Cleaning System (EGCS) is a specialized device used to monitor and measure the concentration of PAH compounds in the exhaust gases of marine engines. PAHs are a group of organic compounds with multiple aromatic rings, known for their potential environmental and health hazards. Monitoring these compounds is crucial for ensuring that the emissions from ships meet regulatory standards and minimize their impact on the environment.

Role and Importance of PAH Sensors in EGCS

1, Regulatory Compliance:

PAH sensors help ships comply with international regulations, such as those set by the International Maritime Organization (IMO), which mandates the monitoring and reduction of harmful emissions, including PAHs.

2, Environmental Protection:

By detecting and measuring PAH levels, these sensors aid in reducing the release of harmful pollutants into the atmosphere and water bodies, thereby protecting marine ecosystems and public health.

3, Performance Monitoring:

PAH sensors provide real-time data on the efficiency of the EGCS. This information is crucial for optimizing the operation of the system and ensuring it functions effectively in removing pollutants from exhaust gases.

PAH sensors are vital components of Exhaust Gas Cleaning Systems, enabling ships to monitor and control PAH emissions effectively. Their role in ensuring compliance with environmental regulations and enhancing the performance of EGCS makes them indispensable for modern maritime operations.

Tags: PAH sensor, DS810 PAH sensors, PAH Sensors for EGCS, PAH Sensors for scrubber, Suppliers, manufacturers, factory, wholesale, buy, price, quotation, bulk, for sale, companies, stock, cost.

Related Product:

PAH Sensor for Oil in Water Measurement

To send An Enquiry Now:

The post Success Case of OPS PAH Sensors used for Exhaust Gas Cleaning System (EGCS) appeared first on Water Quality Sensors.

Why do exhaust gas cleaning systems (EGCS) need a PAH measurement sensor?

OPS-Lily — Thu, 14 Dec 2023 07:42:47 +0000

Polycyclic aromatic hydrocarbons (PAHs) are a group of organic compounds that contain two or more fused aromatic rings. They are often formed during the incomplete combustion of organic matter, including the combustion of fossil fuels in internal combustion engines. PAHs are considered environmental pollutants and can have adverse effects on human health. (PAH measurement sensor)

There is a vast variety of sources for PAHs to enter the environment, both natural and man-made. These include industrial wastewater, road runoff, fossil fuel combustion, oil spills, forest and grass fires, volcanic particles, and natural oil seeps. There are also seasonal variations in concentration, for example, increases can be seen in winter because of the heating of buildings in towns and cities. Low molecular weight PAHs with two or three rings are present normally in dissolved form in water or gaseous in the atmosphere. However the higher the molecular weight the more hydrophobic they behave and the more they are bound to particles. The highest PAH concentrations are therefore found in sediments. Sediments can be disturbed during shallow water maneuvering of a ship and as a result, may enter the wash water system.

In the context of exhaust gas cleaning systems, such as those used in ships or industrial processes, a PAH measurement sensor may be employed for several reasons:

1, Regulatory Compliance:

Many regulatory bodies, such as the International Maritime Organization (IMO), set limits on the emissions of certain pollutants, including PAHs, from exhaust systems. Monitoring PAH levels ensures compliance with these regulations. The IMO requires the background concentration of PAH at the wash water inlet to be considered when measuring the PAH concentration at system discharge. It is also required that monitoring at discharge is before any dilution for correction of the wash water pH. PAH must be continuously measured online and data securely logged to confirm compliance with the IMO EGCS Guidelines.

2, Environmental Impact:

PAHs are known to be harmful to the environment, as they can persist in air, water, and soil. Monitoring PAH emissions helps to assess and mitigate the environmental impact of exhaust gases.

3, Health and Safety:

PAHs are considered hazardous substances, and exposure to them can have adverse effects on human health. Monitoring PAH levels in exhaust gases is crucial for assessing the potential health risks to workers and nearby populations.

4, Optimization of Cleaning Systems:

PAH measurement sensors can provide real-time data on the efficiency of exhaust gas cleaning systems. By measuring PAH levels before and after the cleaning process, operators can assess the system’s performance and make adjustments as needed to ensure optimal pollution control.

5, Research and Development:

Monitoring PAHs in exhaust gases contributes to ongoing research and development efforts aimed at improving emission control technologies. It helps scientists and engineers understand the effectiveness of existing systems and develop new and more efficient methods for reducing PAH emissions.

In summary, a PAH measurement sensor is essential for ensuring regulatory compliance, protecting the environment, safeguarding human health, optimizing exhaust gas cleaning systems, and contributing to ongoing efforts to improve emission control technologies.

Tags: PAH measurement sensor, PAH sensor, Monitoring PAH levels, measuring the PAH concentration, Monitoring PAH emissions, Monitoring PAHs in exhaust gases, Suppliers, manufacturers, factory, wholesale, buy, price, quotation, bulk, for sale, companies, stock, cost.

Related Product:

Real-time PAH Sensor for Oil in Water Measurement

OPS Low-Cost Online PAHs Analyzer: Protecting the Environment

OPS-Lily — Wed, 13 Dec 2023 06:41:58 +0000

Are you seeking a reliable and affordable solution to monitor Polycyclic Aromatic Hydrocarbons (PAHs) in the environment? Our innovative Online PAHs Analyzer offers precise and cost-effective detection, making it an essential tool for environmental monitoring agencies, research institutions, industrial facilities, and public health organizations.

Key Features of OPS Low-Cost Real-time PAHs Analyzer:

1, Precision: Our Online PAHs Analyzer delivers accurate and reliable results, ensuring peace of mind in environmental monitoring efforts.

2, Affordability: Say goodbye to expensive monitoring equipment! Our Industrial PAH analyzer provides a cost-effective solution without compromising on quality.

3, Portability: Designed for convenience, our Rapid PAH analysis probe is compact and portable, allowing for on-the-go monitoring in various environmental settings.

4, Ease of Use: Our sensor simplifies the PAHs monitoring process with user-friendly features, making it accessible to professionals at all levels of expertise.

Why Choose OPS Fluorescence spectroscopy-PAH Analyzer:

1, Reliable Performance:

Our sensor’s advanced technology and rigorous testing guarantee trustworthy results in PAHs detection.

2, Environmental Stewardship:

Our sensor supports initiatives to safeguard ecosystems and public health by enabling accurate and efficient PAHs monitoring.

3, Cost-Efficiency:

Save on monitoring expenses without sacrificing the quality and accuracy of PAH detection.

Join us in advocating for a cleaner, safer environment with OPS Low-Cost Online Polycyclic aromatic hydrocarbon (PAHs) Analyzer. Contact us today to learn how our sensor can elevate your environmental monitoring efforts while reducing costs.

Tags: PAH Analyzer, Polycyclic aromatic hydrocarbon analyzer, Real-time PAH analyzer, Rapid PAH analysis probe, Industrial PAH analyzer, Suppliers, manufacturers, factory, wholesale, buy, price, quotation, bulk, for sale, companies, stock, cost.

Related Product:

Online PAHs (Polycyclic Aromatic Hydrocarbons) Analyzer

Sources and impacts of Polycyclic Aromatic Hydrocarbons (PAHs) in water

OPS-Lily — Wed, 13 Dec 2023 05:55:25 +0000

Polycyclic aromatic hydrocarbons (PAHs) in water are a class of organic compounds that are widely found in natural and man-made environments and are usually produced through combustion processes. PAHs are toxic and potentially harmful to human health and ecosystems.

From Natural Sources:

-Oil and gas: PAHs can be released from crude oil, natural gas, and other petroleum products.

-Volcanic eruptions: Volcanic activity can release large amounts of PAHs into the atmosphere and eventually land in bodies of water.

-Biodegradation: Some microorganisms can degrade organic matter, including plant and animal remains containing PAHs.

From Man-made sources:

-Industrial emissions: Many industrial processes produce large amounts of PAHs, such as oil refining, coal processing, coking, etc.

-Vehicle Exhaust: Vehicle exhaust contains large amounts of PAHs, especially diesel and older vehicles emit more.

-Coal combustion: Coal combustion is an important source of PAHs, especially in developing countries.

PAHs are potentially harmful to both human health and ecosystems.

To Human Health impacts:

-Carcinogenicity: Many PAHs are considered potential carcinogens and may cause lung cancer, skin cancer, etc.

-Respiratory problems: Long-term exposure to PAHs may lead to respiratory problems such as asthma and bronchitis.

-Neurological problems: some studies have shown that exposure to high levels of PAHs may have adverse effects on the nervous system, such as learning and behavioral problems.

To Ecological impacts:

-Aquatic organism toxicity: PAHs can harm aquatic organisms, including fish, crustaceans, and plankton.

-Bioaccumulation: PAHs can gradually accumulate in the food chain, reaching higher concentrations in higher consumers.

Introducing our new state-of-the-art Polycyclic Aromatic Hydrocarbons (PAHs) water testing sensor. This innovative device is designed to accurately detect and measure the presence of PAHs in water, providing essential information for environmental monitoring and public health safety.

Tags: Polycyclic Aromatic Hydrocarbons (PAHs) in water, Polycyclic Aromatic Hydrocarbons (PAHs) water testing, Polycyclic Aromatic Hydrocarbons (PAHs) sensors, Suppliers, manufacturers, factory, wholesale, buy, price, quotation, bulk, for sale, companies, stock, cost.

Related Product:

https://opticaldosensor.com/product/real-time-pah-sensor-for-oil-in-water-measurement/
